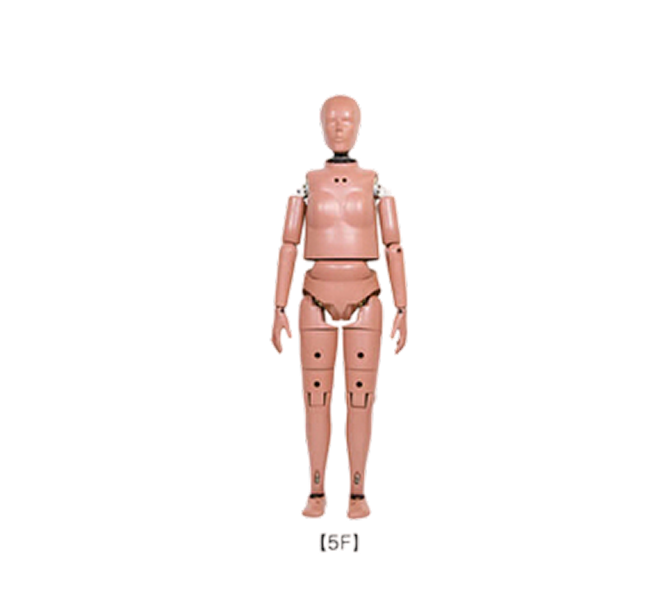

Left: Hybrid III 5th Percentile Female Pedestrian
Weight (kg)
| Head | 3.730+0.05 |
|---|---|
|
Neck |
0.910+0.09 |
|
Upper Torso |
12.20+0.14 |
|
Lower Torso |
13.250+0.14 |
|
Upper Arm (each) |
1.180+0.05 |
|
Lower Arm and Hand (each) |
0.900+0.05 |
|
Hand |
0.280+0.50 |
|
Thigh |
3.130+0.09 |
|
Lower Leg |
3.270+0.05 |
|
Foot |
0.790+0.05 |
|
Total Weight |
49.050+0.91 |

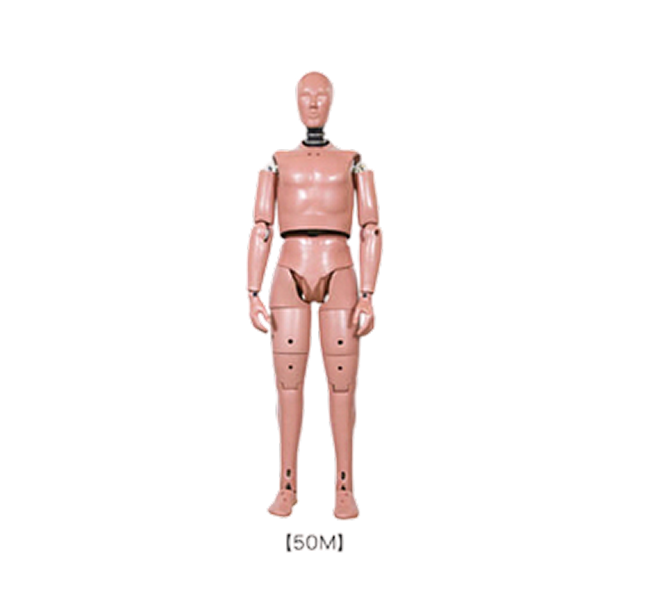

Center: Hybrid III 50th Percentile Male Pedestrian
Weight (kg)
| Head | 4.536+0.045 |
|---|---|
|
Neck |
1.542+0.045 |
|
Upper Torso |
17.191+0.136 |
|
Lower Torso |
23.042+0.136 |
|
Upper Arm (each) |
1.996+0.090 |
|
Lower Arm and Hand (each) |
2.268+0.090 |
|
Thigh |
5.987+0.090 |
|
Lower Leg Foot |
5.443+0.136 |
|
Total Weight |
77.700+1.180 |

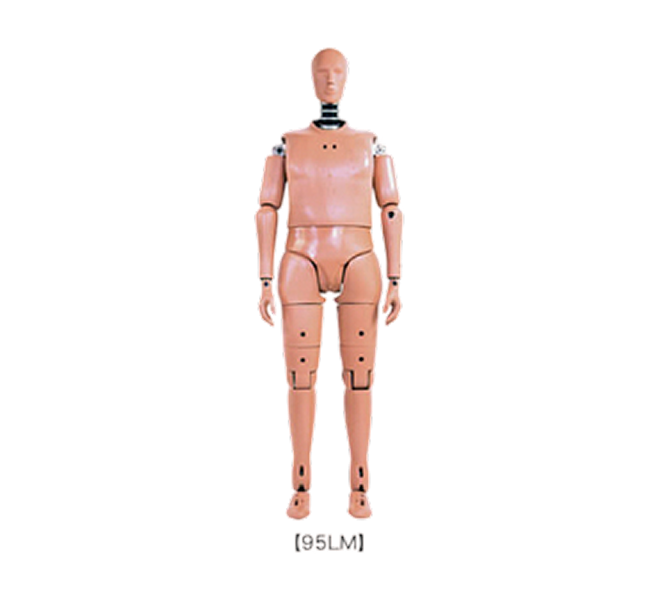

Right: Hybrid III 95th Percentile Large Male Pedestrian
Weight (kg)
| Head | 4.94+0.05 |
|---|---|
|
Neck |
1.68+0.05 |
|
Upper Torso |
22.32+0.36 |
|
Lower Torso |
30.30+0.36 |
|
Upper Arm (each) |
2.81+0.05 |
|
Lower Arm and Hand (each) |
2.06+0.05 |
|
Thigh |
8.21+0.09 |
|
Lower Leg Foot |
5.75+0.09 |
|
Total Weight |
101.24+1.63 |
