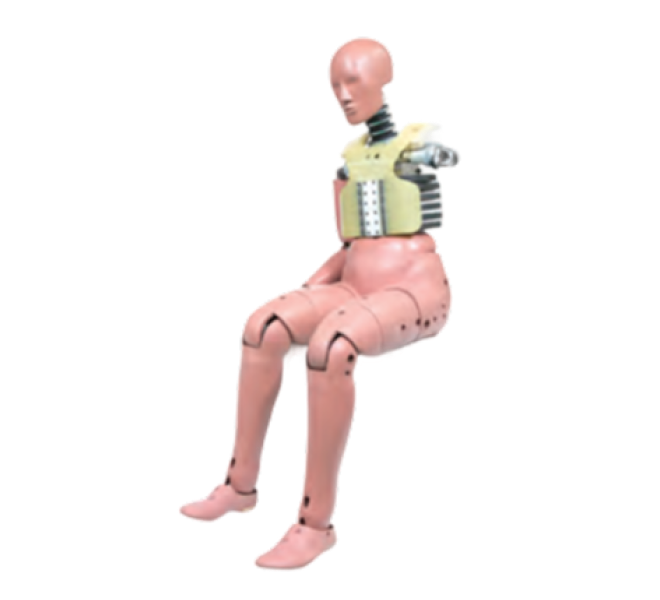

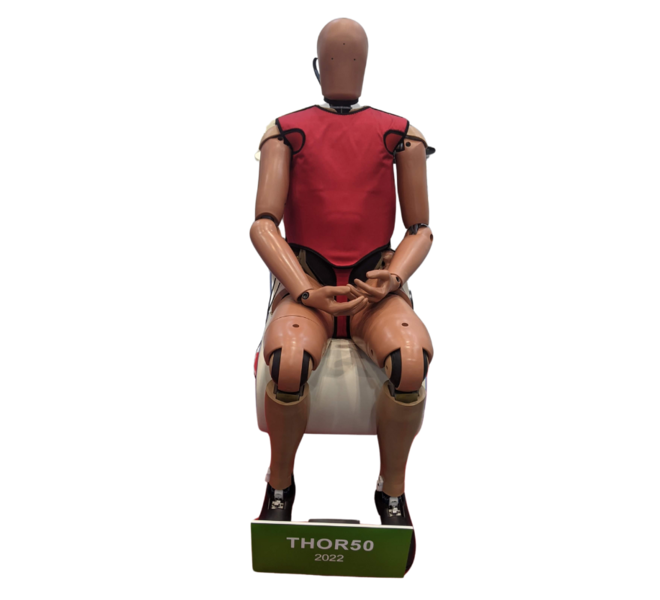

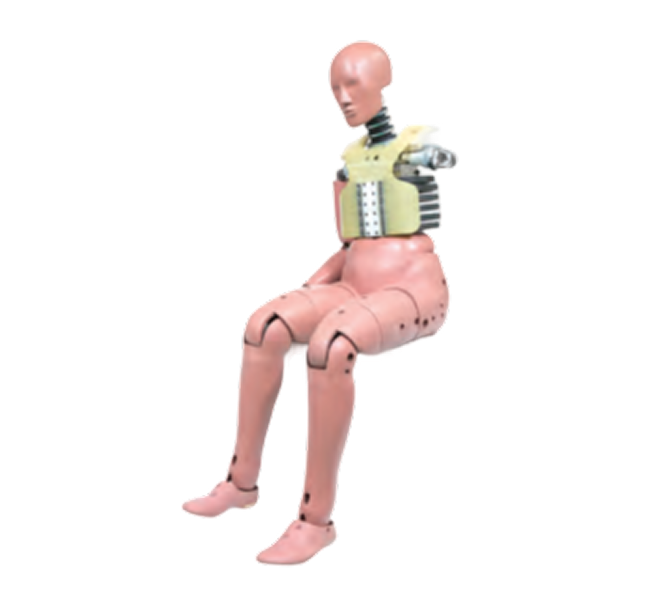

THOR-50M
Applicable standard ■NHTSA ■EURO NCAP
Weight (kg)
| Seated height | L1 | 906+13 |
|---|---|---|
|
Hip pivot height |
L2 |
116+5 |
|
Hip pivot to seat back |
L3 |
153+13 |
|
Thigh clearance |
L4 |
183+9 |
|
Knee pivot to bottom of foot |
L5 |
505+7 |
|
Knee pivot to hip pivot |
L6 |
413+9 |
|
Knee centerline to knee centerline |
L7 |
253+5 |
|
Head back to seat back |
L8 |
91+1.180 |
|
Rib 3 depth |
L9 |
226+9 |
|
Rib 7 depth |
L10 |
229+9 |
|
Shoulder-Elbow length |
L11 |
391+7 |
|
Width across arms |
L12 |
461+9 |
|
Waist width |
L13 |
331+7 |
|
Back of elbow to wrist pivot |
L14 |
291+9 |
|
Wrist pivot to middle finger |
L15 |
165+9 |

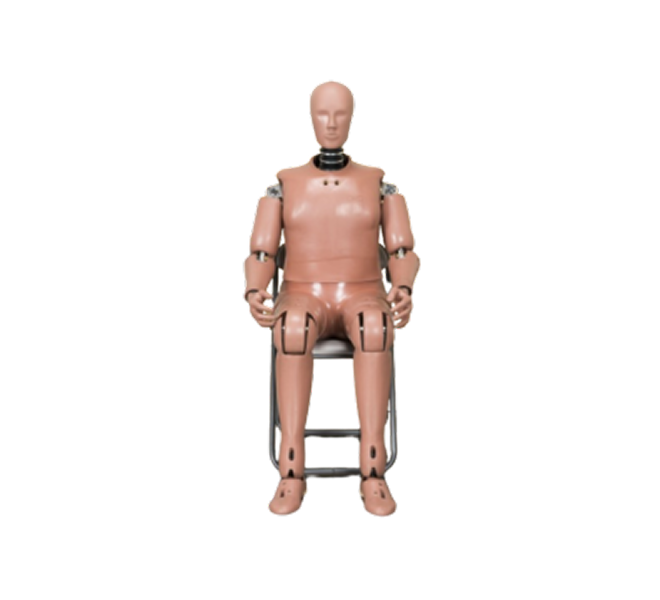

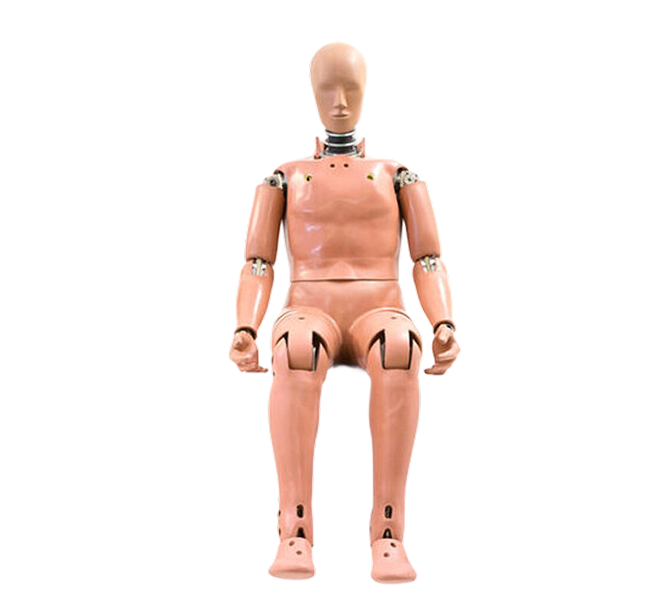

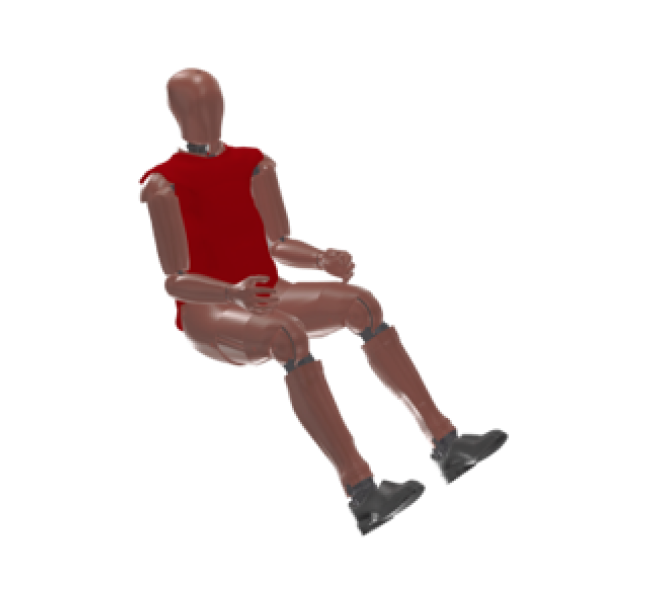

Hybrid-III 50th Percentile Male
Applicable standard ■TRIAS ■USA FMVSS208 ■EU ECE R94
Weight (kg)
| Seated height | L1 | 906+13 |
|---|---|---|
|
Hip pivot height |
L2 |
116+5 |
|
Hip pivot to seat back |
L3 |
153+13 |
|
Thigh clearance |
L4 |
183+9 |
|
Knee pivot to bottom of foot |
L5 |
505+7 |
|
Knee pivot to hip pivot |
L6 |
413+9 |
|
Knee centerline to knee centerline |
L7 |
253+5 |
|
Head back to seat back |
L8 |
91+1.180 |
|
Rib 3 depth |
L9 |
226+9 |
|
Rib 7 depth |
L10 |
229+9 |
|
Shoulder-Elbow length |
L11 |
391+7 |
|
Width across arms |
L12 |
461+9 |
|
Waist width |
L13 |
331+7 |
|
Back of elbow to wrist pivot |
L14 |
291+9 |
|
Wrist pivot to middle finger |
L15 |
165+9 |

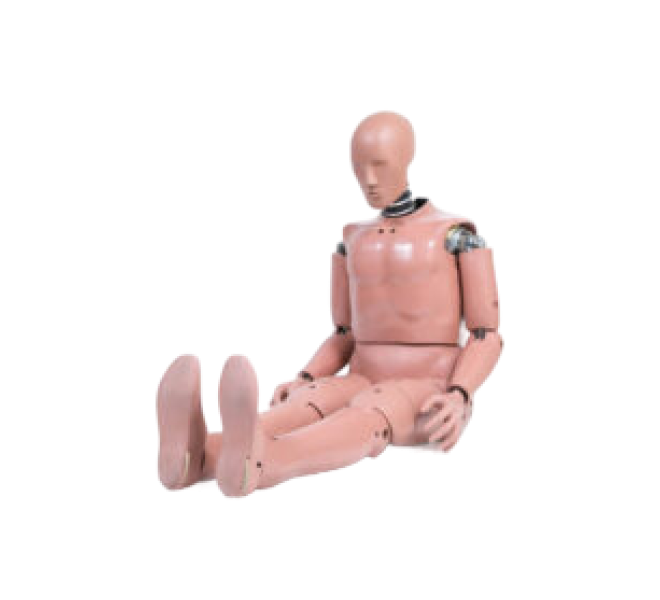

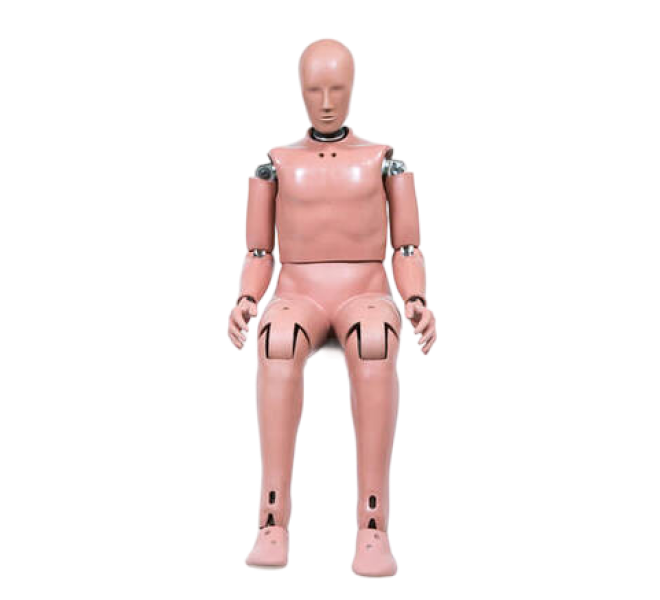

Hybrid-III 5th Percentile Male
Applicable standard ■ TRIAS ■USA FMVSS208 ■EU ECE R94
Weight (kg)
| Head | 4.536+0.045 |
|---|---|
|
Neck |
1.542+0.045 |
|
Upper Torso |
17.191+0.136 |
|
Lower Torso |
23.042+0.136 |
|
Upper Arm (each) |
1.996+0.90 |
|
Lower Arm and Hand (each) |
2.268+0.090 |
|
Thigh (each) |
5.987+0.90 |
|
Lower Leg and Foot (each) |
5.443+0.136 |
|
Total Weight |
77.700+1.180 |

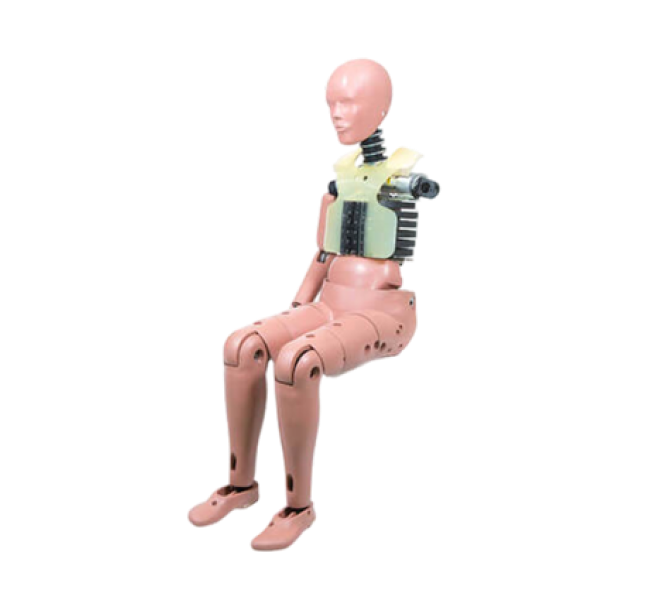

Hybrid-III 95th Percentile Large Male
Applicable standard ■Designated as SAE standard H3-95 dummy
Weight (kg)
| Head | 3.730+0.05 |
|---|---|
|
Neck |
0.910+0.09 |
|
Upper Torso |
12.020+0.14 |
|
Lower Torso |
1.180+0.05 |
|
Upper Arm (each) |
0.900+0.05 |
|
Lower Arm and Hand (each) |
0.280+0.05 |
|
Hand (each)
|
0.280+0.05 |
|
Thigh (each) |
3.130+0.09 |
|
Lower (each) |
3.270+0.05 |
|
Foot |
0.790+0.05 |
|
Total Weight |
49.050+0.91 |

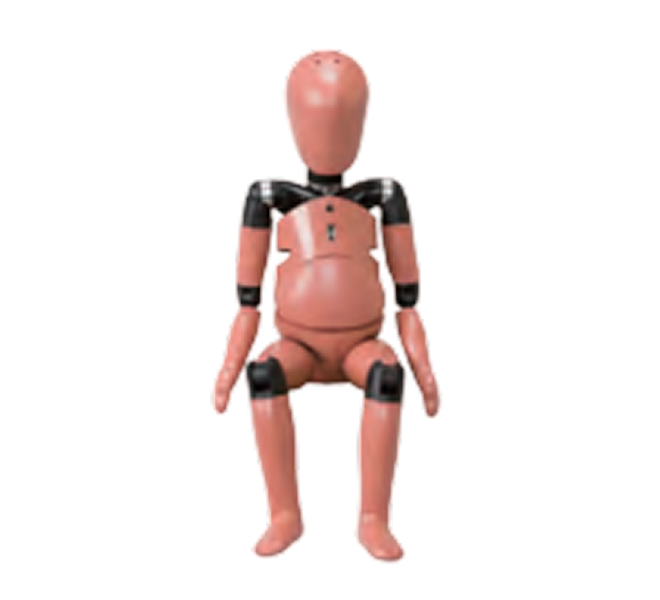

Q3 Dummy(EU)
Outer Size (mm)
| Sitting Height | 544 |
|---|---|
|
Shoulder Pivot Height |
329 |
|
Chest |
142 |
|
Shoulder Width |
259 |
|
Buttock to knee Length |
305 |
|
Buttock to Behind the knee Length |
253 |

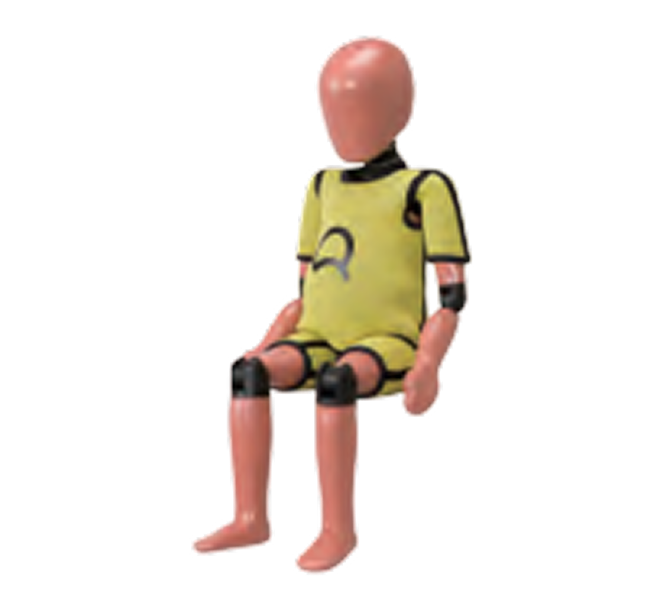

Q3s Dummy(USA)
Weight (kg)
| Head + Neck | 3.17 |
|---|---|
|
Torso (including clothing) |
6.40 |
|
Upper Arm |
0.75 |
|
Lower Arm |
0.73 |
|
Thigh |
2.00 |
|
Lower Leg |
1.54 |
|
Total Weight |
14.60 |

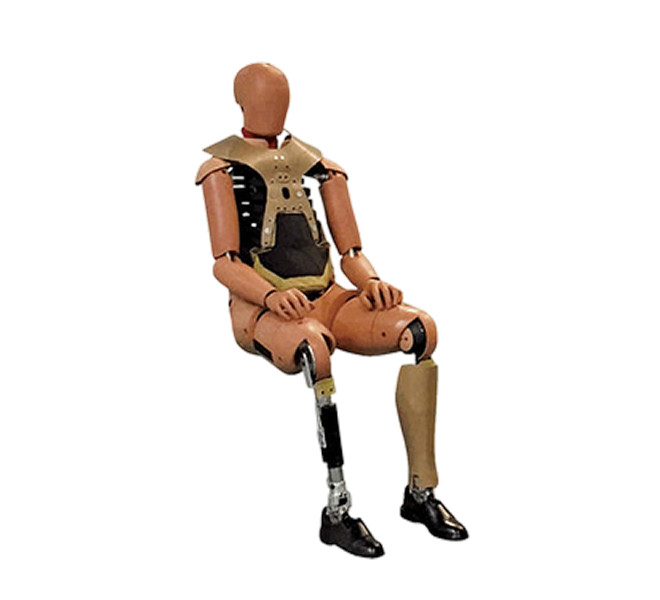

Hybrid-III 50th FAA
Out Size (mm)
| Head | 4.536+0.045 |
|---|---|
|
Neck |
1.542+0.045 |
|
Upper Torso |
17.191+0.136 |
|
Lower Torso |
23.042+0.136 |
|
Upper Arm (each) |
1.996+0.090 |
|
Lower Arm and Hand (each) |
2.268+0.090 |
|
Thigh (each) |
5.987+0.090 |
|
Lower Leg and Foot (each) |
5.443+0.136 |
|
Total Weight |
77.700+1.180 |
Hybrid-III 95th FAA
Out Size (mm)
| Head | 4.94+0.05 |
|---|---|
|
Neck |
1.68+0.05 |
|
Upper Torso |
22.32+0.36 |
|
Lower Torso |
30.30+0.36 |
|
Upper Arm (each) |
2.81+0.05 |
|
Lower Arm and Hand (each) |
2.06+0.05 |
|
Thigh (each) |
8.21+0.09 |
|
Lower Leg and Foot (each) |
5.75+0.09 |
|
Total Weight |
101.24+1.63 |

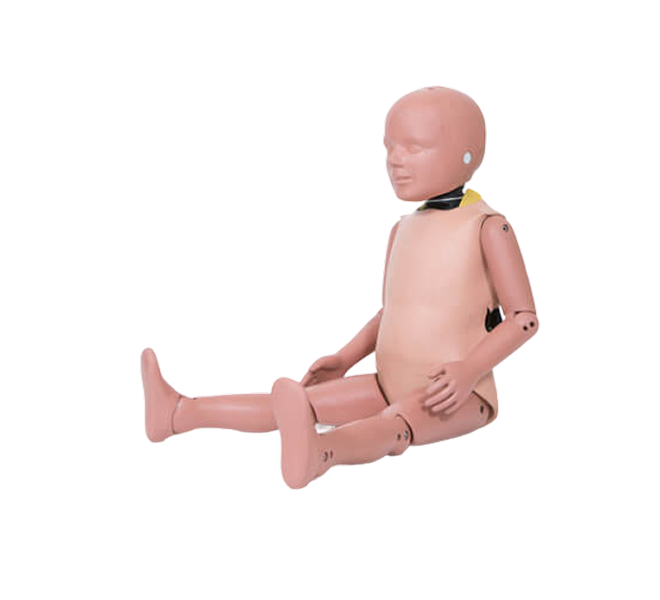

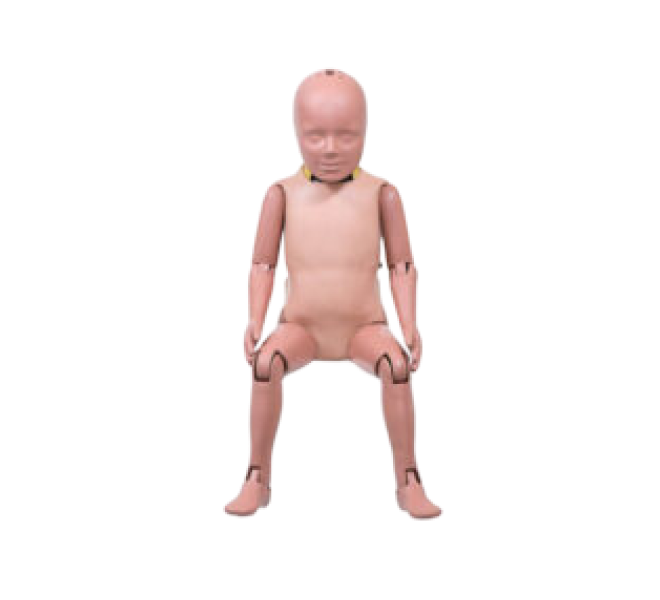

Hybrid-III 3YO
Applicable standard ■49 CFR PART572 Subpart P
Out Size (mm)
| Sitting Height | 546.1 |
|---|---|
|
Shoulder Pivot Height |
315.0 |
|
Buttock to Knee Length |
292.2 |
|
Knee Pivot Height |
249.2 |
|
Shoulder Width |
244.1 |
|
Head Back to Backline |
53.3 |
|
Popliteal Height |
226.1 |
Weight (kg)
| Head | 2.72 |
|---|---|
|
Neck |
0.79 |
|
Upper Torso |
7.00 |
|
Lower Torso |
0.44 |
|
Upper Arm (each) |
0.46 |
|
Lower Arm and Hand (each) |
1.01 |
|
Thigh (each) |
0.61 |
|
Lower Leg and Foot (each) |
0.13 |
|
Total Weight |
16.17 |
