ANTHROPOMORPHIC TEST DEVICES
FRONT IMPACT DUMMIES
THOR-50M
Applicable standard
■NHTSA ■EURO NCAP

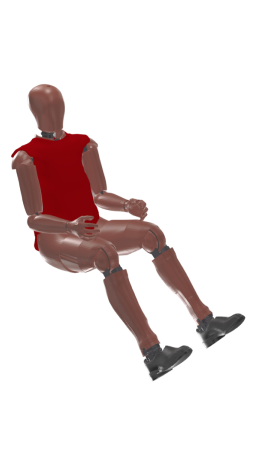

Hybrid-III 50th Percentile Male
Applicable standard
■日本 TRIAS ■USA FMVSS208 ■EU ECE R94
Hybrid-III 5th Percentile Female
Applicable standard
■日本 TRIAS ■USA FMVSS208 ■EU ECE R94
Hybrid-III 95th Percentile Large Male
Applicable standard
■Designated as SAE standard H3-95 dummy
Q3 Dummy
Q3 Dummy(EU)
Q3s Dummy(USA)
Dummy for Aircraft Seat Evaluation
*The FAA Dummy is standardized in Part 23.562, 25.562, 27.562, and 29.562 of CFR 14.
*HS (Heli safe) specification models are available both for 50th and 95th FAA Dummies
Hybrid-III 50th FAA
Hybrid-III 95th FAA
Hybrid-III 3YO
Applicable standard
■49 CFR PART572 Subpart P
SIDE IMPACT DUMMIES
WorldSID 50M
Applicable standard
■ECE R95
ES- 2re
ES-2re Side Impact Dummy for side impact.
Applicable standard
■FMVSS214 49CFR PART572 Subpart U
ES-2re Side Impact
ES-2re Side Impact 1/2 Potentiometer
SID-IIs
SID-IIs Side Impact Dummy for side impact.
Applicable standard
■49CFR PART572 Subpart V
SID-IIs Side Impact Dummy
SID-IIs Side Impact Dummy 1/2 Potentiometer
COMFORT TESTING DUMMIES
Lightweight Dummies
Light weight Hybrid-III 5th Percentile Female Dummy（20Kg）
Light weight Hybrid-III 95th Percentile Male Dummy（40Kg）
【Application】
This dummy is lightweight, easy-to-handle, and suitable for in-vehicle comfort studies and the like.
The range of motion of each part is the same as that of an anthropomorphic test dummy.
5th Female
■Total weight : 20kg
95th Male
■Total weight : 40kg
The head can be moved 60° to the left and right.
PEDESTRIAN DUMMIES
Dummies for Pedestrian Protection Performance Test
Pedestrian dummies are standing posture dummies which are modified versions of Hybrid-Ill 5F, 50M,
and 95LM dummies, created by replacing some parts in the Pelvis, Lumbar Spine, and Knee Slider.
Left: Hybrid III 5th Percentile Female Pedestrian
Center: Hybrid III 50th Percentile Male Pedestrian
Right: Hybrid III 95th Percentile Large Male Pedestrian
